ATLAS STAR

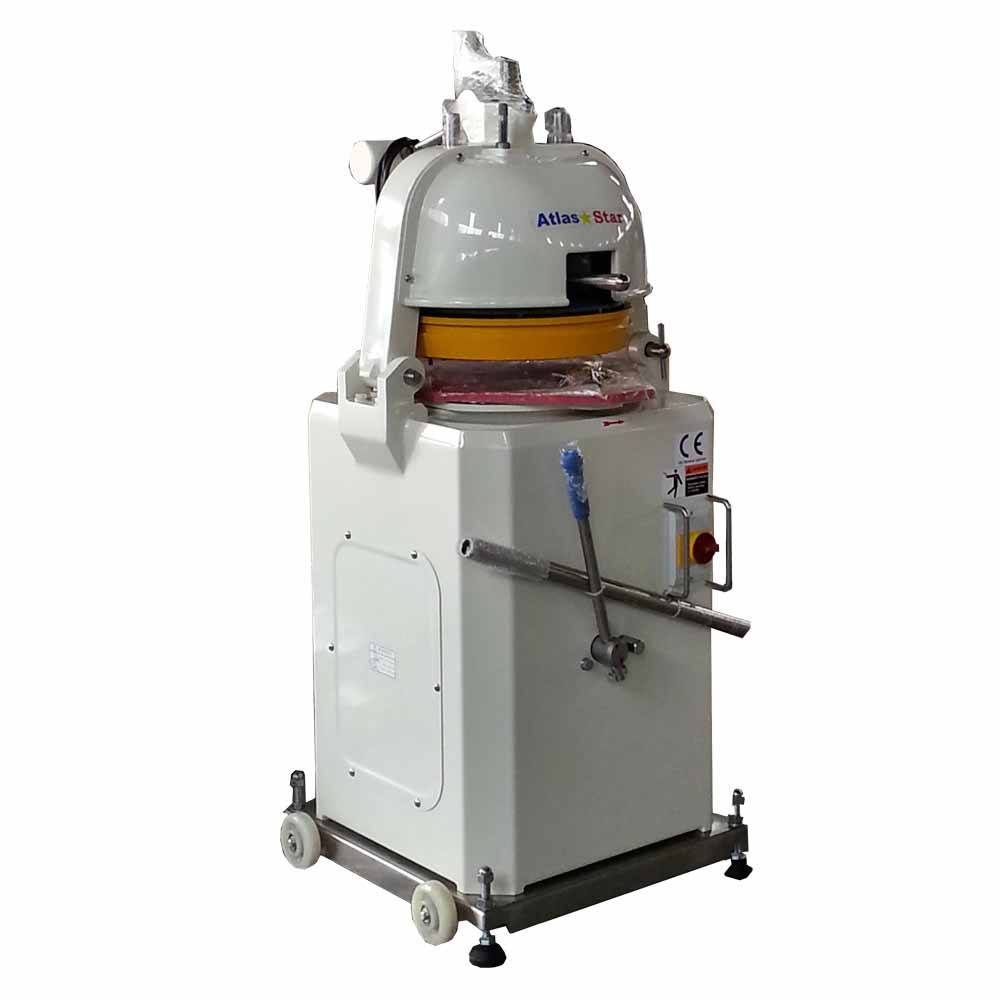

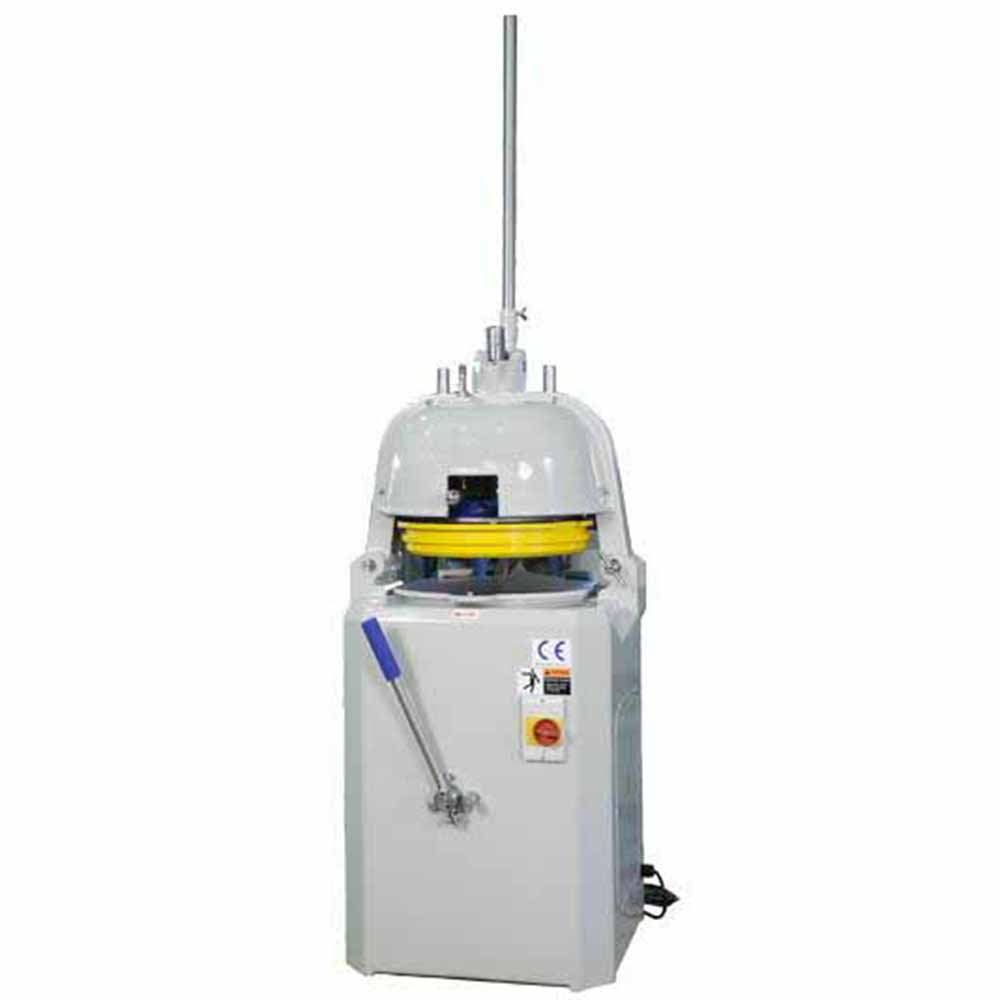

Semi-Automatic Dough Divider with Rounder (Taiwan Made)

The semi-automatic rolling divider is perfectly suited for the division and shaping of rolled bread, buns, doughnuts and pizza dough balls.



Specifications

Dividing Part	36 pcs
Dividing Range	1 - 3.5 ounce (30 - 100g)
Dividing Batch	2.4 - 7.9 lbs (1 - 3.8 Kg) / per
Timer	3.5 sec / per
Output	6,000 - 7,000 pcs / per hour
Motor	1/4 HP
Voltage	Single phase or 3 phase for 220V
Dimension	25″ x 31″ x 81″ (640 x 780 x 2,050 mm)
N. W. / G. W.	794 lbs (360 Kg) / 882 lbs (400 Kg)
Accessory	3 x Sanitary Rounding Plate
Other Optional	30 - 100g into 30 pcs (1 - 3.5 ounce) 40 - 120g into 30 pcs (1.4 - 4.2 ounce) 10 - 40g into 36 pcs (0.3 - 1.4 ounce) 30 - 100g into 36 pcs (1 - 3.5 ounce) 50 - 150g into 22 pcs (1.7 - 5.3 ounce)
Certified	CE approval
Country of Origin	100% made in Taiwan



Features

• Convenient ONE-TOUCH push button controls.

• Separating Razor formed in #304 SS, Anti-rust, sanitary, easy to clear by yourself.

• Heavy-duty construction for quiet operation with minimal vibration.

• Mounted on castors for additional mobility when cleaning or maintaining.

• Manual motor start with built-in thermal overload protection.

• Hourly production of up to 3,500 pieces (depending on operator and workflow).

• Easy-wipe surfaces that are rust and corrosion resistant.

• Full auto Dough Divider Rounder, Continuous Dough Divider Rounder are available.





Other models are us followers:



Model No.	Type	Dividing Part	Motor	Weight
AS-36A	Fully-automatic dough divider rounder	36 pcs	1 HP	460 Kg
➤ AS-36	Semi-automatic dough divider rounder	36 pcs	1 HP	360 Kg
SH-336	Electric standing dough divider	36 pcs	0.25 HP	120 Kg
SH-501	Electric table top dough divider	14 pcs	0.25 HP	40 Kg
SH-443	Manual table top dough divider	36 pcs	X	70 Kg
SH-502	Table top dough rounder	X	0.5 HP	52 Kg





Instruction

 video of dough divider rounder - https://youtu.be/Kie-RUwFBTI
