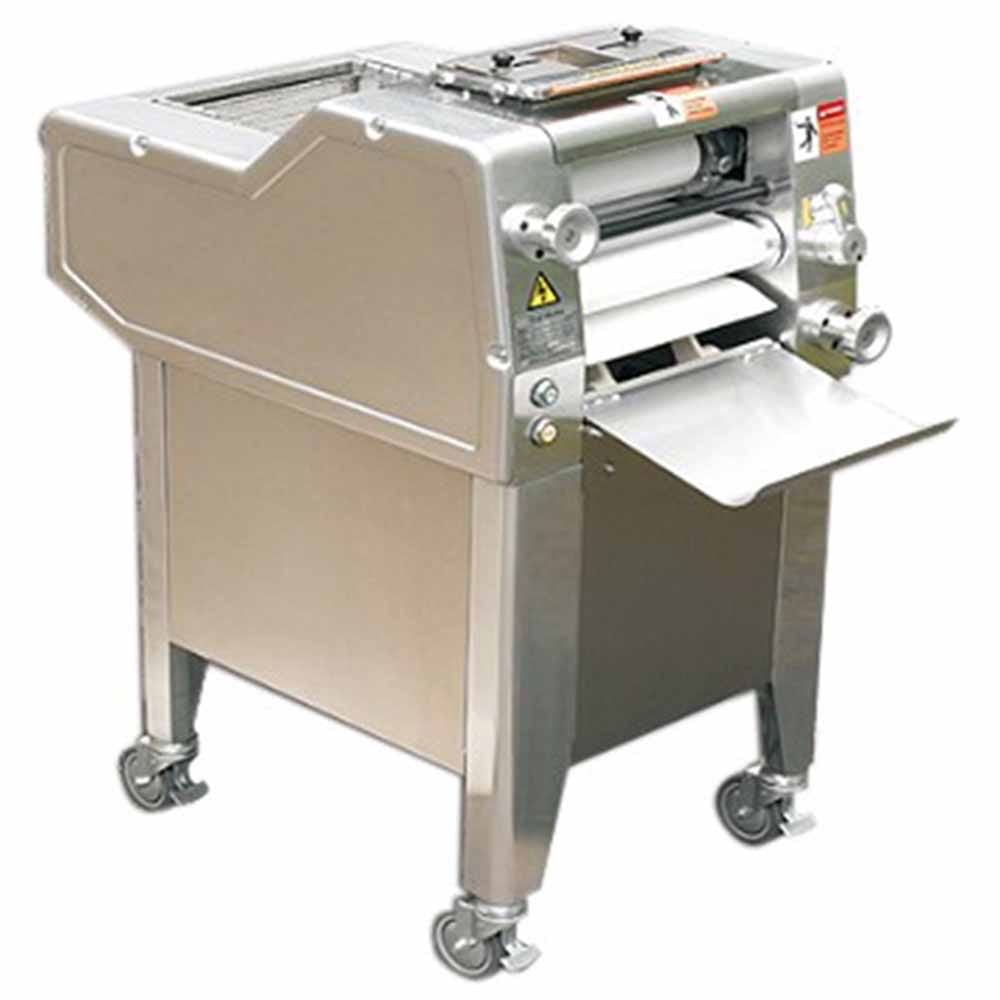

Rapid Bread & Roll Moulder (Taiwan Made)



The bread moulder with gentle spring loaded rollers system will not tear dough. Use for moulding all types of breads & rolls, Subs & hotdog rolls, Rye & Pan breads, Hoagie & finger rolls, Challah & pretzels. The dough moulder work especially well for sticky dough which contains a high percentage of water, sugar, and margarine. Cover can be opened for quick, easy cleaning and maintenance.



Specifications

Roller Gap.	1 - 18 mm (0.7" thickness)
Roller	2 sets rollers
Moulding Weight	30g - 400g (1 - 14 oz.)
Conveyor belt	300 x 1,350 mm (12" width)
Roller Size	Ø76 x 245 mm (Ø3” x 9.6”)
Output	3,000 pcs / hour
Motor	1/2 HP
Voltage	1 phase or 3 phase for 110V - 240V
Dimension	32" x 22" x 44" (820 x 570 x 1,130 mm)
N. W.	271 lbs (123 Kg)
Certificate	CE approval
Country of Origin	100% made in Taiwan



Features

• One set roller is available.
• FDA approved polyester conveyor belt.

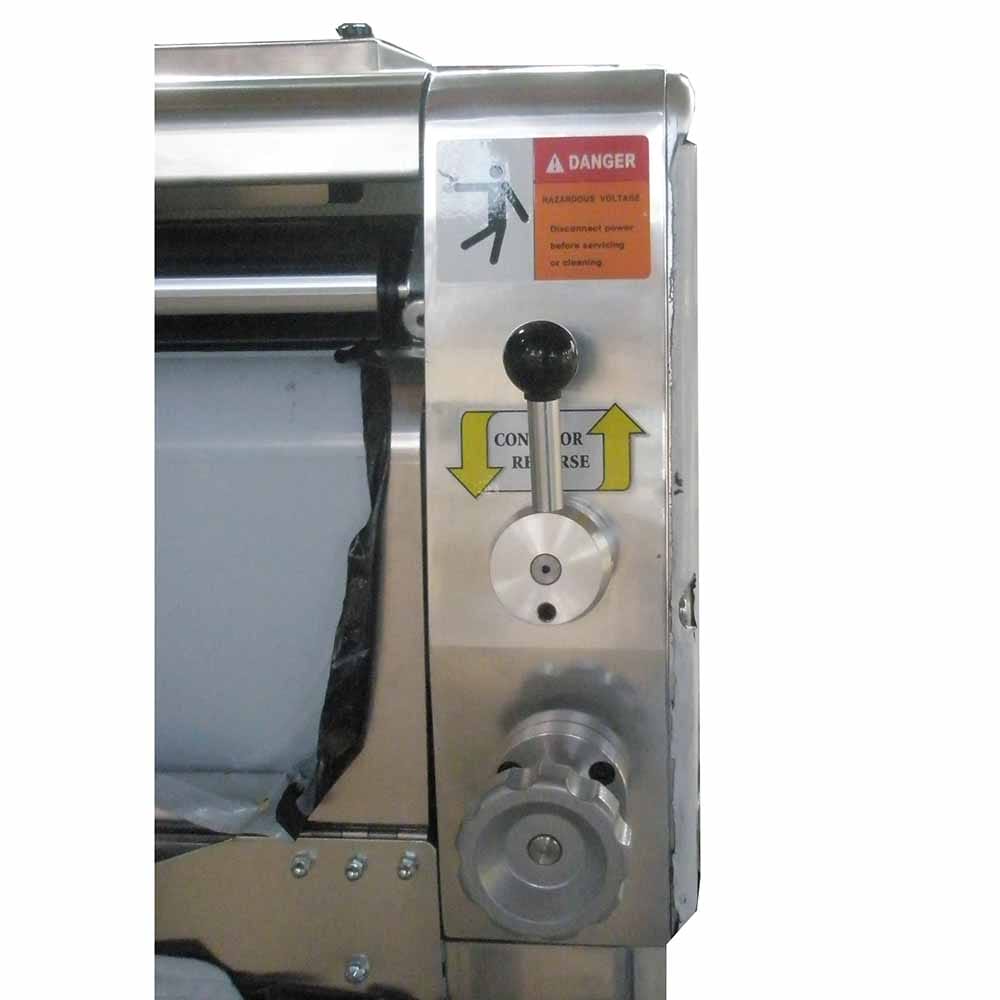

• Clockwise direction and reverse direction conveyor belt can work.

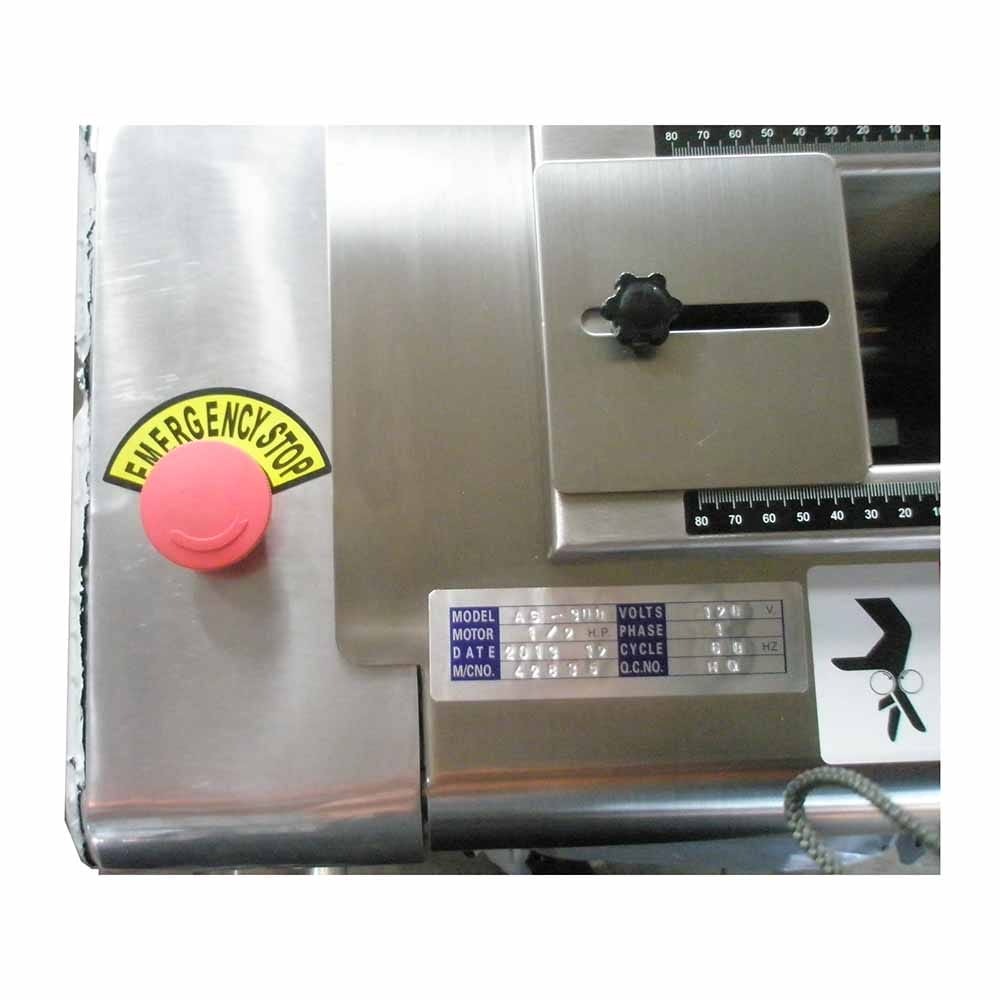

• Infeed safety guard bar with automatic shut off.
• All sealed heavy duty ball bearings.
• Gentle spring loaded rollers.
• Fully adjustable side guides.
• 3" diameter synthetic dough rollers complete with nylon scrapers.
• Hand feed or use under a bread plant.
• Wheel castors for moving and fixed.
• One person operation.



Other models are as follows:



Model No.	Roller	Moulding weight	Motor	Weight
AS-750	4 rollers	50g - 1,000g	1 HP	210 Kg
➤   AS-300	2 rollers	30g - 400g	0.5 HP	123 Kg
AST-300	1 roller	30g - 400g	0.25 HP	60 Kg
