175 kg flour Spiral Mixer Dough Kneader (Taiwan Made)
Strong enough for bagels, gentle enough for artisan dough, Taiwan made Stationary Bowl Spiral Mixers are available in a wide range of sizes, and can mix from 20 and 440 lbs. of flour. Coordinated 2-Speed spiral and bowl rotation gives maximum control of ingredient blending, dough development and better end product.
»Specifications
Model Number |
S-400 |
Bowl Capacity |
353 Qt. (300 Liter) |
Flour Capacity |
386 lbs (175 kg) |
Dough Capacity |
617 lbs (280 kg) |
Transmission Type |
Belt Driven |
Speeds |
2 Speed Spiral and Bowl Drive |

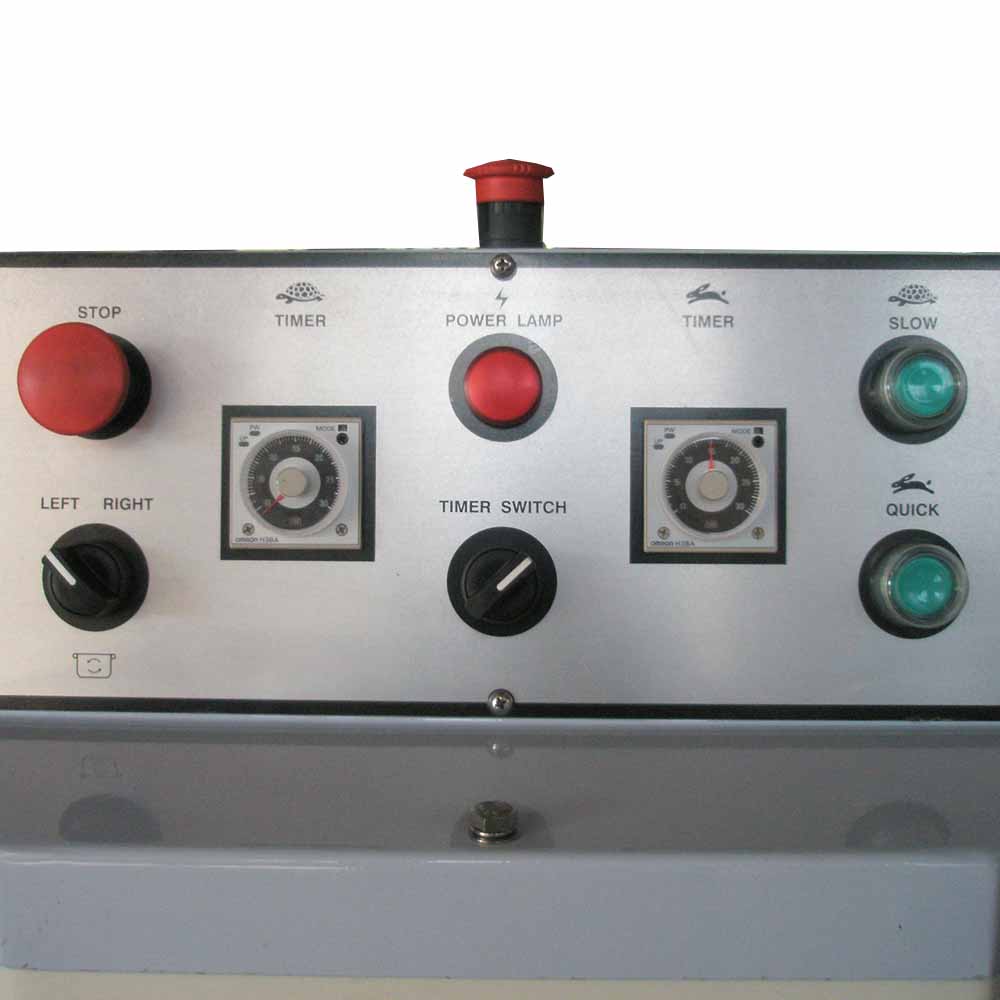

Timer |
2 Timers with Auto Changeover |
Spiral Arm Motor |
15 HP |
Bowl Motor |
3 HP |
Voltage |
3 phase for 220V - 415V |
N.W. |
2425 lbs (1,100 kg) |
Dimension |
65” x 45” x 57” (1,650 x 1,150 x 1,450 mm) |
Accessory |
1 x Stainless Steel Bowl 1 x Stainless Steel Spiral Arm 1 x Stainless Steel Breaker Bar 1 x Stainless Steel Guard 4 x Rubber Feet Pad 1 x 30-40 ml Lubricant |
Certification |
CE Approval |
Country of Origin |
100% made in Taiwan |
Instruction
Dough mixing - https://youtu.be/yClK1f76oUc
»Other models conveyor belt are as follows:
Model No. | Flour | Power(Arm/Bowl) | Weight |
S-06 | 6 kg | 1 & 0.5 HP | 110 Kg |
S-40 | 15 kg | 2.5 & 0.5 HP | 190 Kg |
S-80 | 25 kg | 5 & 0.5 HP | 375 Kg |
S-100 | 38 kg | 5 & 0.5 HP | 395 Kg |
S-150 | 50 kg | 6 & 0.75 HP | 450 Kg |
S-200 | 75 kg | 7.5 & 0.75 HP | 500 Kg |
S-250 | 100 kg | 10 & 2 HP | 850 Kg |
S-300 | 125 kg | 12 & 3 HP | 920 Kg |
S-350 | 150 kg | 15 & 3 HP | 950 Kg |
S-400 | 175 kg | 15 & 3 HP | 1,100 Kg |
S-450 | 200 kg | 16 & 3 HP | 1,200 Kg |
