Planetary Dough Mixer

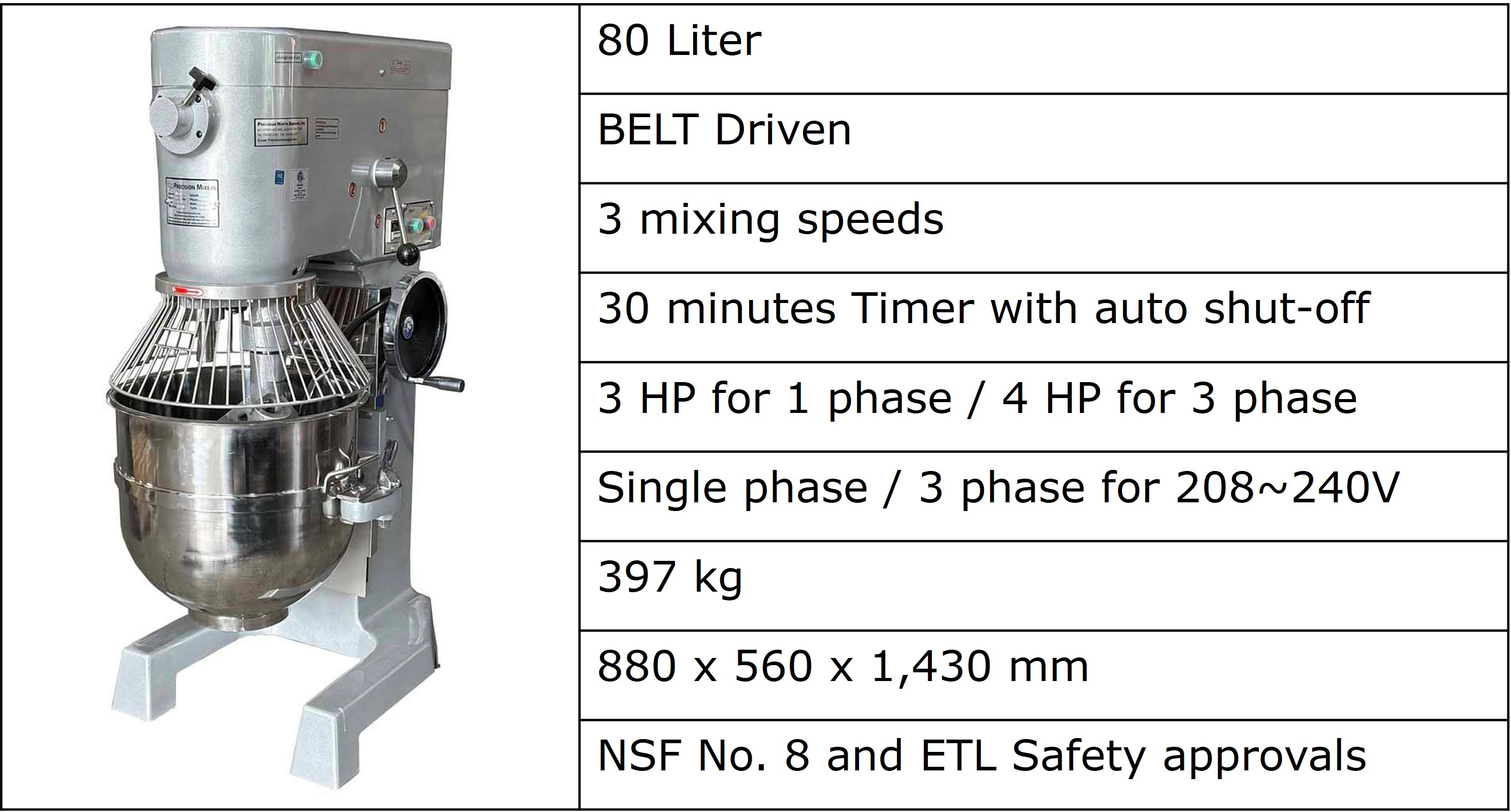

Planetary Dough Mixer Atlas Star 80 Liter Cake Mixer HD-60



planetary dough mixer

80 Liter Pizza Dough Mixer/Kneader (Taiwan Made)

Specifications

Bowl Capacity

84.6 Qt (80 Liter)

Flour Capacity

73 lbs (33 kg)

Dough Capacity

121 lbs (55 kg)

Transmission type

BELT Driven

Speeds

3 mixing speeds

Timer

30 minutes Timer with auto shut-off

Agitator Speeds

65 / 124 / 208 RPM

Hub Speeds

74 / 142 / 239 RPM

Motor Power

3 HP for 1 phase / 4 HP for 3 phase

Voltage

Single phase / 3 phase for 208~240V

N.W. / G.W.

875 lbs (397 kg) / 995 lbs (451 kg)

Dimension

35” x 22” x 56” (880 x 560 x 1,430 mm)

Accessory

1 x Stainless Steel Bowl

1 x 60 Qt Alum. Alloy Dough Hook

1 x 80 Qt Alum. Alloy Flat Beater

1 x 80 Qt Stainless Steel Wire Whip

1 x S/S Security Guard (optional)

1 x Bowl Dolly (optional)

Electric Lifting Bowl (optional)

40 Qt reducer kits (optional)

Country of Origin

100% made in Taiwan

Certified

NSF No. 8 and ETL Safety approvals

Features

  • 40 Qt reducer kits for bowl, hook, beater, and wire whip.
  • Universal #12 Hub for Meat Grinder / Vegetable Slicer
  • 1/3 HP lifting motor with gear reduction.
  • Motor thermal overload protection.
  • All metal and die-cast aluminum body.
  • Transmission is made of harden alloy steel gears and mounted in ball bearings.
  • Interlocking mechanism prevents mixing until guard is fully closed.
  • Precision-milled, heat-treated steel alloy gear for durability.
  • High polish stainless steel meets food industry sanitation needs.



Instruction

Dough mixing - https://youtu.be/Buvj8R37iGs



»Other models conveyor belt are as follows:

Model No. Bowl Capacity Power Weight
SH-08 8 Liter 0.33 HP 34 Kg
AS-10 10 Liter 0.33 HP 38 Kg
AV-01 10 Liter 0.33 HP 38 Kg
SH-10 10 Liter 0.33 HP 65 Kg
AS-20 20 Liter 0.5 HP 86 Kg
AV-02 20 Liter 0.5 HP 90 Kg
HUB-20 20 Liter 0.75 HP 93 Kg
SH-20 20 Liter 0.5 HP 90 Kg
AS-30 30 Liter 1 HP 134 Kg
HUB-30 30 Liter 1 HP 185 Kg
SH-30 30 Liter 1 HP 160 Kg
AS-40 40 Liter 1.5 HP 149 Kg
HUB-40 40 Liter 1.5 HP 210 Kg
AS-50 50 Liter 2 HP 181 Kg
HUB-50 50 Liter 2 HP 210 Kg
SH-303 60 Liter 3 HP 330 Kg
V-60 60 Liter 3 HP 368 Kg
HD-60 80 Liter 3 HP 397 Kg
SH-606 80 Liter 3.25 HP 385 Kg
V-80 80 Liter 4 HP 400 Kg
M-140W 140 Liter 6.5 HP 1,000 Kg



Company Information

Kitchen equipment

ATLAS STAR engaged in manufacturing an exhaustive range of Bakery Pizza Machines. Catering to the variegated requirements of the baking industry, our professional baking equipment and complete lines for the production of bakery and confectionery products.


Our bakery and pizza machines are offered in several models and configurations and can be custom-designed to meet the specific requirements of our clients.



Kitchen equipment



Atlas Star OEM Production

bread dough mixer



A giant step for bakery machine

As a professional OEM in bakery machine, we improve the most important aspects of the machine experience.

bakery machine



Our Certificates

Kitchen equipment





Q & A

1. Dough hook material? Ans: Aluminum alloy

2. Whip material? Ans: Stainless Steel

3. Flat Beater/Paddle material?  Ans: Aluminum alloy

4. Stir bowl material?  Ans: All stainless steel.

5. Machine material?  Ans: Cast iron.

6. Voltage?  Ans: Single phase for 110V-240V.

7. Safety gear?  Ans: Safety guard on the stainless steel bowl, Micro switch of safety guard, Micro switch for lifting and declining the stainless steel bowl, ON/OFF push buttons, Motor thermal overload protection, and buttons which comply with Electrical safety standards.

8. Warranty period?  Ans: 1 year for all the machine components for the breakdown of the normal use of contract equipment (non-human factor damage).

9. Certificates? Ans: ETL & NSF model is available.

10. Color customize?  Ans: Standard colors are white and silver. We also provide customization service.

11. Lead time? Ans: 15-20 days after order confirmation and payment receipt, it depends on our further notice.
